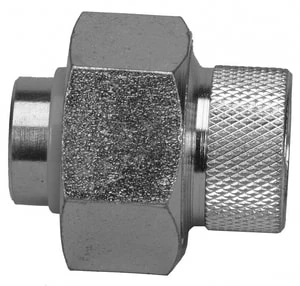

Wholesale ✨ PROFLO® PFXCCS Series 3/4 FIP x 3/4 in. Copper Sweat Dielectric Union ⌛

Original price was: $9.51.Current price is: $6.66.

SKU: 3878889 Categories: Dielectric Unions & Nipples, Pipe Fitting Parts & Accessories Tag: Forged Brass, Forged Carbon Steel, Plastic, Rubber, Zinc Plated

Experience Quality, Shop with Us
Safe Shopping Guaranteed
Easy, Fast Returns Guarantee
Unbeatable Quality, Unbeatable Value

Prevents electrolysis or galvanic action when connecting dissimilar materials

Includes EPDM washer and nylon fiber sleeve

Max Pressure: 250 psi @ 180°F

NSF 61

ANSI B1.20.1;ANSI B16.22;ANSI 61

ANSI Specifications	ANSI 372, ANSI 61, ANSI A108, ANSI B16.22
Fitting Sizes	3/4 in
ASSE Standards	ASSE 1079 2012
Application	Residential
Clean Bagged	No
Collection	PFXCCS Series
End Connection 1	FIPS
End Connection 2	Sweat
End Connections	FIPS x Sweat
Fitting Size 1	3/4 in
Fitting Size 2	3/4 in
ASME Specifications	ASME A108, ASME B1.20.1
IAPMO Listed	Yes
Fitting Type	Dielectric Union, Straight
Lead Law Compliant	Yes
Length	2-3/100 in
Material	Forged Brass, Forged Carbon Steel, Plastic, Rubber, Zinc Plated
Material Type	EPDM, Polysulfone
Maximum Pressure	250 psi
Maximum Temperature	180
NSF Certified	Yes
NSF Specifications	NSF 372, NSF 61
UL Listed	No
Width	1-17/20 in
